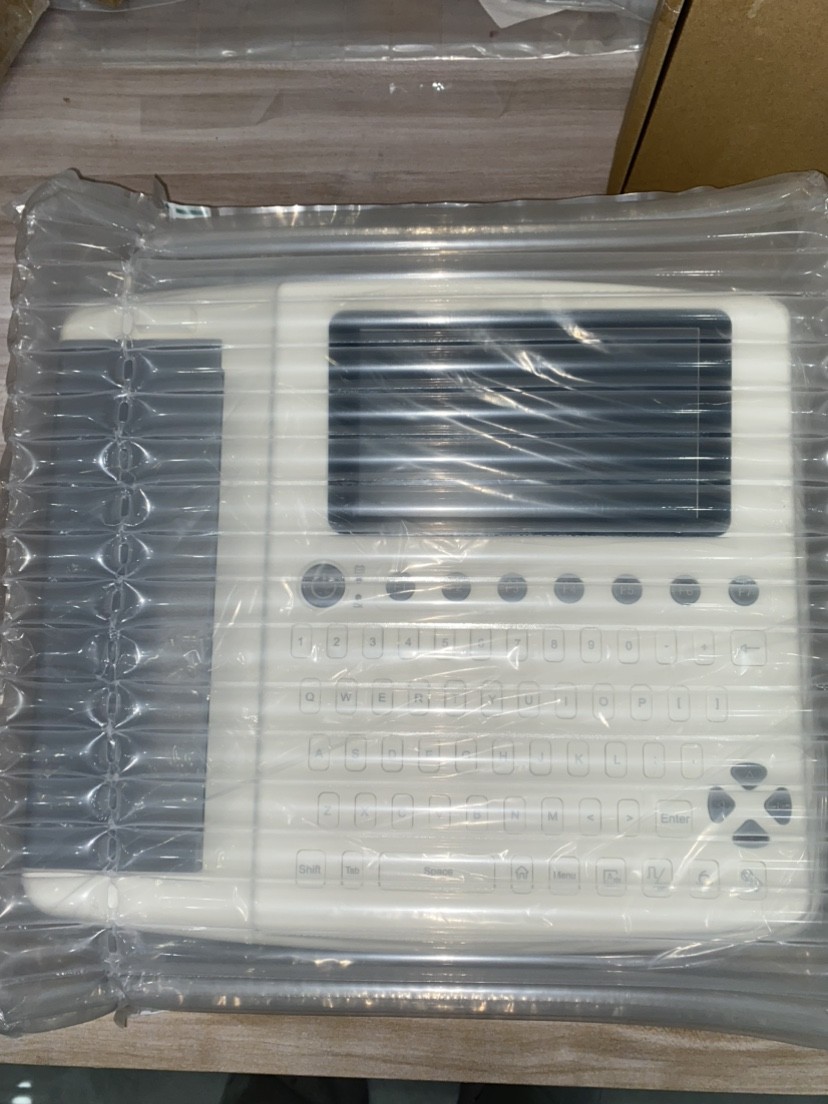

    Touch Screen Portable 12 Channel 12 Lead ECG Machine With Software Storage 1000cases

    Ask Lasest Price
    Brand Name : Rainbow
    Model Number : ECG-8812
    Certification : ISO13485
    Price : US $380-$468/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30000units/year
    Delivery Time : Within 3 days
    • Product Details
    • Company Profile

    Touch Screen Portable 12 Channel 12 Lead ECG Machine With Software Storage 1000cases

    Best Selling Touch Screen Portable 12 Channel 12 Lead ECG Machine With Software Storage 1000cases

    Touch Screen Portable 12 Channel 12 Lead ECG Machine With Software Storage 1000cases

    Touch Screen Portable 12 Channel 12 Lead ECG Machine With Software Storage 1000cases

    Features

    1. 7 inch high resolution color touch screen..
    2. Full alphanumeric keyboard with shortcut keys, efficient in operation.
    3. Simultaneous 12 leads ECG acquisition and display.
    4. Automatic ECG measurements and interpretation.
    5. Internal storage up to 1000 cases, convenient for case review and statistic.
    6. Built-in rechargeable lithium high capacity battery.
    7. ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software.

    Specification

    Itemsspecification
    LeadStandard 12 leads
    Sampling modeSimultaneous 12 leads acquisition
    Sampling rate1000Hz
    A/D Converter24bits
    Frequency response0.05~ 160Hz (-3db)
    Operation modeManual, Auto, Rhythm, 1 channel 1 minute
    FilterAC Filter: 50 Hz / 60Hz
    EMG Filter: 25 Hz / 35 Hz / 45H2/75 Hz / 100 Hz / 150Hz
    DFT filter: 0.05H2/0.5H2
    CMRR≥100dB (addACfilter)
    Input modeFloating and defibrillation protection
    Input Impedance≥50MΩ(10Hz)
    Input circuit current≤0.05μA
    Input dynamic range±10mVp-p
    Patient leak current<10μA
    Calibration voltage1mV±2%
    Polarizing voltage≥±300mV
    Time constant≥3.2s
    Paper specification210mm (W)*30m(L)
    Memory1000 cases
    Recording modeThermal printing ystem
    Noise level<15μVp-p
    Threshold≤20μV
    Wave Gain/Sensitivity2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (standard sensitivity: 10mm/m V)
    Wave/ Paper speed12.5mm/s. 25mm/s,50mm/s (±3% )
    Machine Dimension365.4*323*85 mm
    Weight2600g (not including the paper)
    AC100V~240V(50/60Hz)
    DC14.4V, 2500mAh, 36.00Wh
    (Built-in rechargeable Li-ion battery)

    Packing List
    Name: QTY
    ECG machine: 1
    ECG cable: 1
    Limb electrodes: 4
    Chest electrodes: 6
    Grounding wire:1
    Print paper: 1 roll
    Power line: 1
    Fuse: 2
    Operation manual: 1
