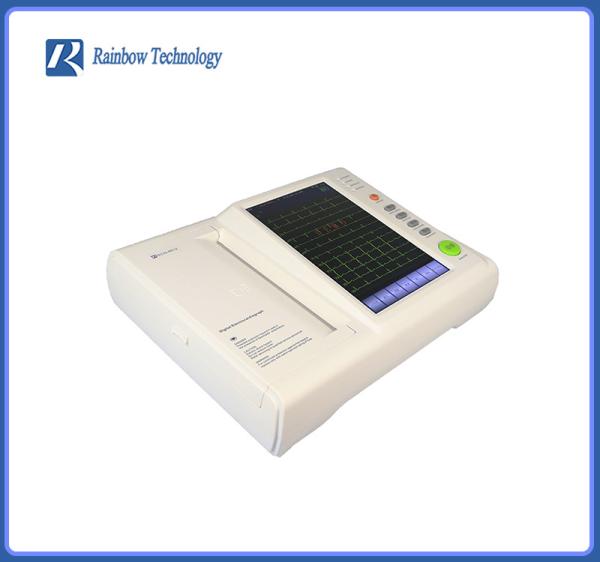

    Lightweight Medical ECG Machine Touch Screen External SD Card Convenient Carry

    Ask Lasest Price
    Brand Name : RAINBOW
    Model Number : ECG-8812 7inch
    Certification : ISO13458, FSC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30000units/year
    Delivery Time : Within 3 days
    • Product Details
    • Company Profile

    Lightweight Medical ECG Machine Touch Screen External SD Card Convenient Carry

    Light Weight Touch Screen Medical ECG Machine External SD Card Convenient Carry

    Specification of 12 Channels Electrocardiograh


    Lead off & lack off paper detection function.
    Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
    Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
    Sensitive filters of ADS, HUM, and EMG.
    Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
    Automatic adjustment of baseline for optimal recording.
    7'' color touch-screen, both push-button and touch operation.
    Modern in design, light in weight, compact in size.
    Built-in rechargeable lithium battery (14.8V/4400mAh), AC/DC power conversion.


    Lightweight Medical ECG Machine Touch Screen External SD Card Convenient Carry


    Fuction Features of ECG Machine


    Adapt to 100-240V, 50/60Hz AC power supply
    Historical data and patient’s information can be reviewed and printed.
    Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
    The machine can store over 500 ECG reports in its built-in flash.
    Connect with PC via ECG workstation software.
    Standard RS232 and USB communication interfaces.
    Sleep mode to save energy and extend LCD life
    The device can record real time clear and exact 12 channel ECG waveform and remark continually.
    Portable design with hidden handle, convenient to carry.
    7 level printing thick can be chosen. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.

    Lightweight Medical ECG Machine Touch Screen External SD Card Convenient Carry


    Parameters of ECG Machine


    CMRR≥ 100dB, with AC FilterCalibrating voltage1mV± 3%
    Input circuitFloatingVoltage tolerance± 500mV
    Input circuit current≤ 0.1µ ATime constant> 3.2s
    Resolution12bit/1000HzFrequent response0.05Hz~150Hz
    Operation modeManual/AutoNoise level≤ 15µ Vp-p
    FilterAC. EMG FilterThreshold≤ 20µ V
    Drift filterAnti-Drift SystemPaper speed12.5, 25, 50mm/s (± 3%)
    Input Impedance> 50MΩSensitivity5,10,20mm/mV
    Patient current leakage< 10µ ARecorderHigh resolution thermal printer
    Specification of fuseT1.6A 250V Ø5×20BatteryBuilt-in rechargeable Li-ion battery 14.8V(4000mAh)
    Recording paperThermal recording paperPackage365mm×306mm×109mm

      Unit package

      • package size:45*21*39cm

      • Gross Weight: 5.6Kg
