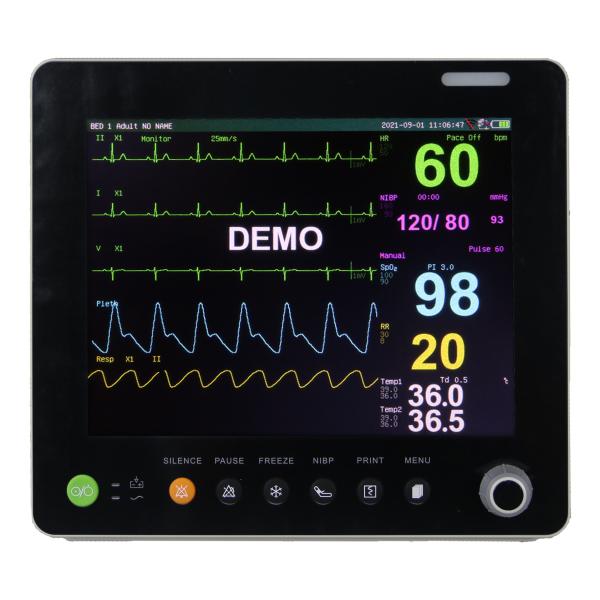

12.1 inch clinical touch screen patient monitor for hospital and
family care
Function: ECG,RESP,TEMP,NIBP,SPO2,PR
Optional: Dual IBP,CO2, CSM,GAS,Recorder
12.1' TFT display
Optional touch screen
Digital SpO2 with excellent performance
Unique human voice alarm
720 hours trend data and 12 hours of all waveforms
Wire and wireless network
16 languages include: English, French, German, Spanish, Portuguese,
Russian and etc
| Lead mode | 5 Leads, I, II, III, AVR, AVL, AVF, V |
| Gain | ´0.25, ´0.5, ´1, ´2 |
| Heart rate | Adult
15 ~ 300 bpm
Neonatal/Pediatric
15 ~ 350 bpm
accuracy
± 1%
resolution
1 bpm |
| Sensitivity | > 200 μV P-P |
| Differential Input Impedance | > 5 M ohm |
| CMRR | Diagnostic Mode
>90 dB
Monitor Mode
>110 dB
Surgery Mode
>110 dB |
| Electrode offset potential | ±300mV |
| Leakage Current | < 10 μA |
| PACE pulse detect | range
±2～±700mV
width
0.1～2ms
rise time
10～100µs |
| PACE pulse rejection | range
±2～±700mV
width
0.1～2ms
rise time
10～100µs |
| Baseline Recovery | < 3 s After defibrillation. |
| Signal Range | ± 5 mV p-p |
| Bandwidth | Surgery 1 ~ 20 Hz
Monitor
0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz |
| Calibration Signal | 1 mV p-p, ± 5% accurac |
| ST measurement | range
-2.0 ~ +2.0 mV
Accuracy
-0.8mV～+0.8mV:
±0.02mV or ±10%, which is greater |
Packing
Packing terms: Anti-collision film+ Carton box
Carton box dimension: 40*30*35cm
Gross weight: 5
Shipping:
Air shipping or Express courier is recommended if the order
quantity was less than 20 units. It usually takes around 7 days to
reach the destination. By ocean shipping, it normally takes 20-40
days depending on the destination port.
What is your MOQ?
1 unit
What is your lead time?
Within 3 days after receiving the payment
What is the payment terms?
TT(Bank Transfer), Paypal, Western Union, Moneygram, XTransfer.
What is the warranty period?
2 years warranty period
Lifetime online technical support
Do you offer OEM service?
Yes, we do
