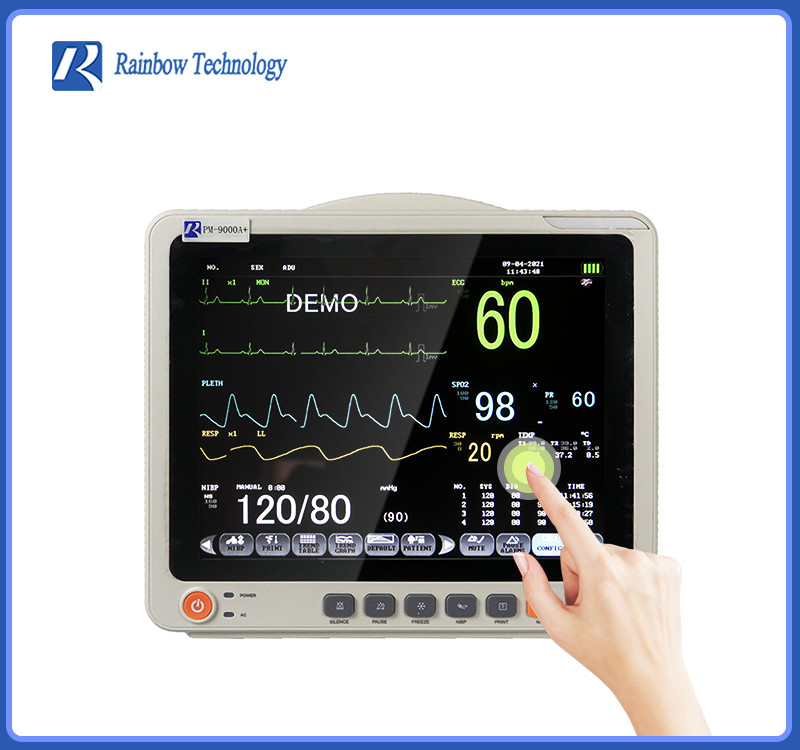

New Mold Design 12.1 Inch 6 Parameter Touch Screen Patient Monitor Multilingual For Patients

Basic parameters:

Features:
1. Brand-new model design, combines Chinese classical elegance and European style.
2. Modularized and one-piece design,strong anti-interference capability, more stable functions,consumes less power.
3. High brightness and resolution 12.1-inch colorful TFT LCD display.
4. Built-in battery,standby time to 120 minus,AC/DC power conversion.
5. Unique Battery charge detection,displayable battery level.
6. Unique real person voice alarm,sound, light and word alarm,three-level intelligent alarm
7. Applying “15-350BP”wide-range heart rate measurement design according to features of newborns.

8. More powerful anti-movement capability in blood pressure measurement, more precise measurement towards low perfusion and shaking fingers.
9. Monitor software with more shortcuts and “one-step” menu management, more straightforward.
10. New improvements in UI operation of the monitor software with larger and clearer icons.

11. Different interface can be set in different clinical departments
12. Operational parameter functions such as CO2 and IBP can be realized with plug and play.

13. 2000-piece trend and data storage,200-set alarm events available for printing.

14.. Applying“Double Overvoltage protection” to ensure the safety, consistency and accuracy under all conditions.
15. Blood pressure with new anti-movement,low perfusion measurement technology in order to guarantee the newborn measurement accuracy.

16. Chinese, English, French, Russian, Portuguese, Turkish and other languages
17. Personalized operation system,concise and straightforward.

18. Various interfaces: A single guide, standard, large font, all leads to satisfy clinical needs.

19. All leads, seven-channel synchronous ECG display.

20. Anti-movement-interference to minimize failures and adjustable for low or high pulse measurement.

Standard configuration:PM-9000A multi parameter patient monitor×1 set, standard 5-leads ECG conductance joint connecting cables×1 set, standard adult blood pressure cuffs×1 set, adult SPO2 probe×1 set, TEMP probe×1 set, power plug line×1 set, grounding wire×1 set, English operation manual×1 set, three certificates×1 set.
Optional:three-channel thermal printer, monitor cart / support bracket/rack
Children/newborn SPO2 probe,Children/newborn blood pressure cuffs
Technical parameters:

• ECG

Lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable

• NIBP

Technology: Oscillography

Measurement method:more accurate with reverse measurement

Measurement units:mmHg/Kpa

Overvoltage protection:double safety protection

Measure time:less than 45S

Scope: Pressure Cuffs 0-250 mmHg

Measure accuracy:ANSI/AAMI SP10-2002 standard average accuracy and deviation

Inflatable cuffs: 180 mmHg (120mmHg for children

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range:

SBP 60 mmHg～250 mmHg

Pmean 45 mmHg～235 mmHg

DBP 40 mmHg～220 mmHg

Measure accuracy:±1.1KPa(±8mmHg)±10%

Response time: 1s
Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SBP maximum 1mmHg～255 mmHg

Threshold 0 mmHg～254 mmHg

DBP maximum 1mmHg～255 mmHg

Threshold 0 mmHg～254 mmHg

Alarm accuracy:±1 mmHg

Standard: ANSI/AAMI SP10-2002

• SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

• TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 1 ° C

Response time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1 ° C-45.5 ° C adjustable
Threshold: 20 ° C-45.4 ° C Adjustable
Alarm accuracy:±1℃

• RESP

Breathing frequency range: 0-60 bum
Accuracy: ± 1rpm
Response time: 1s
Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches
Alarm: Sound and Light
Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Alarm accuracy:±1rpm

Printer(Optional)
Screen:12.1 inches TFT screen of LCD
Battery: sealed maintenance-free lithium battery
Safety standard: lec601-1(GB9706.1)
Specification:three-channel thermal recorder

• System
• Screen:12.1 inches TFT screen of LCD
  Battery: sealed maintenance-free lithium battery
  Safety standard: lec601-1(GB9706.1)
