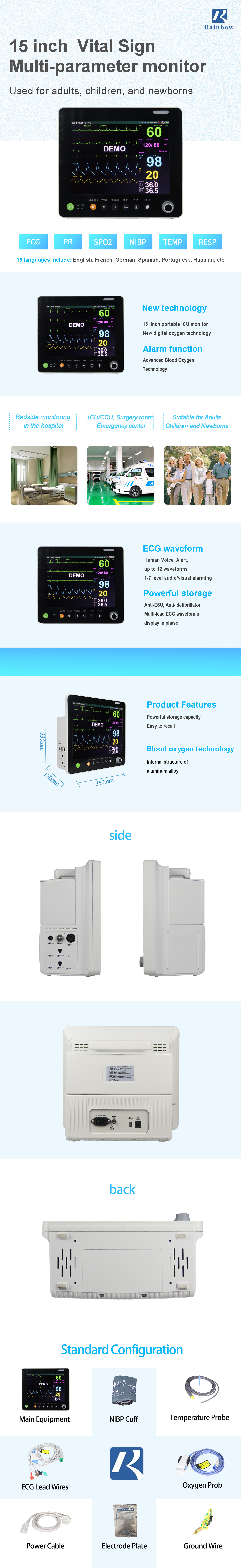

Medical Equipment Patient Monitoring Display 15 Inch Touch Screen Surgical Monitor for Operating Room

Specification

Warning

The patient monitor may not meet its performance specification if stored or used outside the manufacturer’s specified temperature and humidity range.

1.1 Classification

Anti-electroshock type Class I equipment

Anti-electroshock degree CF defibrillation

1.2 Accordant Standard

1.3 Power Supply

100~240 VAC, 50/60 Hz, Pmax=60VA

1.4 Battery

2200 mAh 14.8V rechargeable Lithium battery

Operating time after full charge is more than 1.5 hours

Operating time after the first alarm of low battery will be about 5 minutes

Maximum charging time is less than 6 hours.

1.5 Environment

Temperature

Working 0 ~ 40 °C, 5 ~ 40 °C with CO₂

Storage -20 ~ 50°C

Humidity

Working 15% - 90 %

Storage 15% - 90 % (no coagulation)

1.6 Signal Interface

Network interface standard RJ45 Socket

1.1 ECG

1.1.1 Lead mode

5 Leads, I, II, III, AVR, AVL, AVF, V

1.1.2 Gain

´2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV

1.1.3 Heart rate

Measure range:

Adult 15 ~ 300 bpm

Neonatal/Pediatric 15 ~ 350 bpm

accuracy ± 1%

resolution 1 bpm

1.1.4 Sensitivity

> 200 μV P-P

1.1.5 Differential Input Impedance

> 5 M ohm

1.1.6 CMRR

Diagnostic Mode >90 dB

Monitor Mode >110 dB

Surgery Mode >110 dB

1.1.7 Electrode offset potential

±300mV

1.1.8 Leakage Current

< 10 μA

1.1.9 PACE pulse detect

range ±2～±700mV

width 0.1～2ms

rise time 10～100µs

1.1.10 PACE pulse rejection

range ±2～±700mV

width 0.1～2ms

rise time 10～100µs

1.1.11 Baseline Recovery

< 3 s After defibrillation.

1.1.12 Signal Range

± 5 mV p-p

1.1.13 Bandwidth

Surgery 1 ~ 20 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

Packing

Packing terms: Anti-collision film+ Carton box

Carton box dimension: 41*29.5*38cm

Gross weight: 5.85kg

Shipping:

Air shipping or Express courier is recommended if the order quantity was less than 20 units. It usually takes around 7 days to reach the destination. By ocean shipping, it normally takes 20-40 days depending on the destination port.

FAQ

1.who are we?

We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2.why should you buy from us not from other suppliers?

Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.

3.what can you buy from us?

Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump

4.what services can we provide?

Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

Hunan Province Rainbow Technology is the professional medical equipment manufacturer in China, serving tons of hospitals, clinics , emergency centers and labs around the world.

Hunan Province Rainbow Technology Co., Ltd has more than 26 years of experience in manufacturing and selling Medical Equipment, which mainly includes Patient multi-parameter monitor, ECG machine, Infusion pump, Syringe pump, Nutrition pump , Maternal/Fetal monitor, Medical trolley and Wall mount bracket. As a manufacturer and trading combo, we keep trying to expand our products range for medical supplies on purpose of providing one-stop solution to our clients. Sufficient inventory and stable production capacity are our core advantages.

Hunan Province Rainbow Technology has established strong business relations with a number of international companies in the fields of healthcare and medical equipment all around the world. We strive to focus on clients’ demands and improve all our services through quality management.
