    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box

    Ask Lasest Price
    Brand Name : Rainbow
    Model Number : PM-9000GTA
    Certification : ISO13485, FSC
    Price : US $238-368/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30000units/year
    Delivery Time : Within 3 days
    • Product Details
    • Company Profile

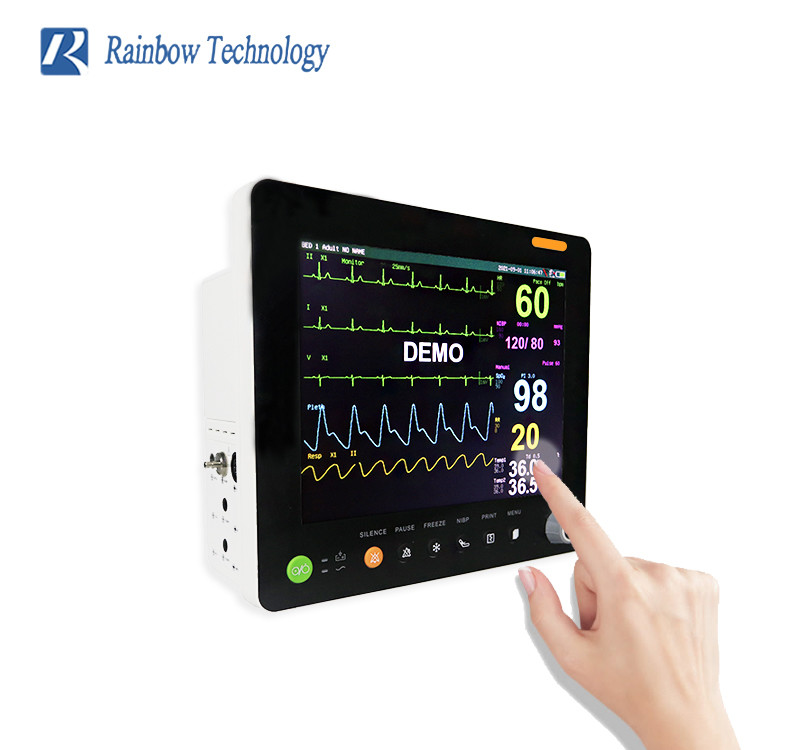

    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box

    ICU CCU 12 inch touch screen cardiac monitor patient monitor with accessory box


    Our Services


    All products of our company have a warranty of 12 months. We have special engineer for after-sales service. If any questions during the use, feel free to tell us by email or telephone at any time, we will do our best to support you to keep your market reputation.


    Technical parameters

    ECG

    lead mode;I,II,III,AVR,AVL,AVF,V1-6

    Gain: ×0.25, × 0. 5, and × 1, × 2

    Frequency: 0.5 Hz - 100 Hz

    Common-mode signal inhibition: More than 70 dB

    Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

    HR: ± 5 BPM

    Precision calibration signal: 1mv(peak, ± 3% accuracy)

    ST Detection: measurement range (-2.0mV----+2.0mV)

    Using Standard: meet the ANSI / AMI EC13 -2002 standard

    Response time: 1s

    Alarm: Sound and Light

    Preset heart rate range: (Alarm over preset numerical)

    Ceiling: 1-255 bpm adjustable

    Threshold: 0-254 bpm adjustable

    NIBP

    Technology: Oscillography

    Mode: manual / automatic

    Measurement units: mmHg / kPa

    Scope: Pressure Cuffs 0-250 mmHg

    Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

    Inflatable cuffs follow: original SBP: + 30 mmHg

    Measuring range: SYS: 60-250 mmHg

    DIA: 40-220 mmHg

    MEAN: 45-235 mmHg

    Response time: 1s

    Alarm: Sound and Light

    Preset range: report (Numerical exceed preset alarm)

    SYS: maximum: 1-255 mmHg adjustable

    Threshold: 0-254 mmHg adjustable

    DIA: ceiling: 1 -255 mmHg adjustable

    Minimum standards: 0-254mmHg adjustable

    SPO2

    Range: 0-100%

    Accuracy: 1%

    Resolution: 1%

    Pulse frequency: 20-250 times / min

    Response time: 1s

    Alarm: Sound and Light

    Preset range: (report Alarm over preset numerical)

    Ceiling: 1% - 100% adjustable

    Threshold: 0% - 99% adjustable

    TEMP

    Technology: thermostat temperature probe

    Measuring range: 20 ° C-45 ° C

    Temperature resolution: 0.1%

    Accuracy: ± 0.1 ° C

    Response Time: 1s

    Alarm: Sound and Light

    Preset range: report (numerical preset alarm over)

    Maximum: 20.1 ° C-45.5 ° C adjustable

    Threshold: 20 ° C-45.4 ° C Adjustable

    RESP

    Breathing frequency range: 0-60 bum

    Accuracy: ± 1rpm

    Response time: 1s

    Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

    Alarm: Sound and Light

    Alarm range: (numerical preset alarm over)

    Ceiling: 10-100 bpm adjustable

    Threshold: 0 -99 bpm adjustable

    Printer(Optional)


    Specification: Dual channel thermal array data recorder

    Print mode: Real time or event triggered record waveform and text

    Accuracy: horizontal: 4oodpi vertical: 800dpi

    Annotation: Date/ time(24 hours)

    Optional wall bracket, mobile stand, visits backpack.

    System

    Screen:12.1 inches TFT screen of LCD

    Battery: sealed maintenance-free lithium battery

    Safety standard: lec601-1(GB9706.1)


    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box

    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box

    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory BoxIcu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box

    Icu Ccu 12 Inch Touch Screen Patient Monitor With Accessory BoxIcu Ccu 12 Inch Touch Screen Patient Monitor With Accessory BoxIcu Ccu 12 Inch Touch Screen Patient Monitor With Accessory Box
